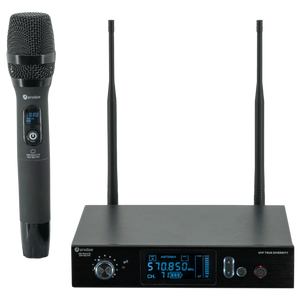

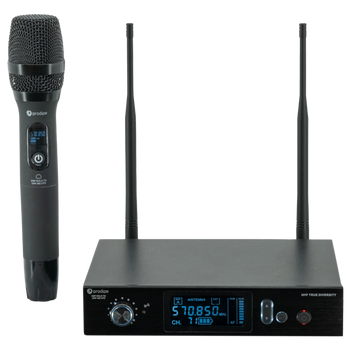

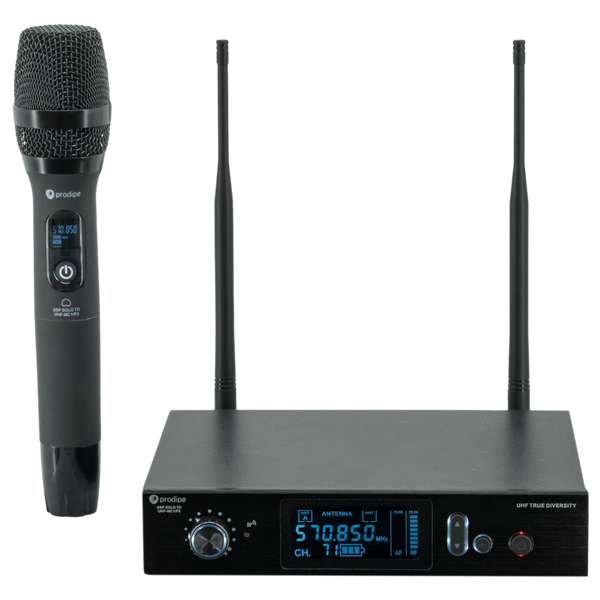

Prodipe MC1 DSP UHF SOLO wireless system

The MC1 UHF system uses a "True Diversity" process that ensures a seamless connection between microphone and receiver. With simultaneous operation of several radio signals, the receiver selects the best audio signal, which guarantees excellent stability and sound precision comparable to wired systems. Combined with the MC1 microphone capsule, you get exceptional UHF sound quality, unparalleled in this price category.

The world is changing, and Prodipe is following these changes, making professional-level sound quality more accessible.

Thanks to globalization and the development of technology, a high price does not always mean top quality. It is worth comparing this system with other solutions to see its capabilities.

Specification:

Transmission type:

• UHF
• True Diversity

Maximum number of devices:

• 8 simultaneously operating UHF Solo systems

Number of channels:

• 100

Frequency range:

• 553 MHz - 578 MHz

Harmonic distortion:

• Less than 0.1%

Range:

• 80 m (under optimal outdoor conditions)

Signal-to-noise ratio (S/N):

• Above 96 dB

UHF system:

• High fidelity audio DSP module
• Anti-interference system

Frequency stability:

• 30 PPM

Accessories included:

• Handle
• Power supply

Application:

• Backline
• Singing / Speech

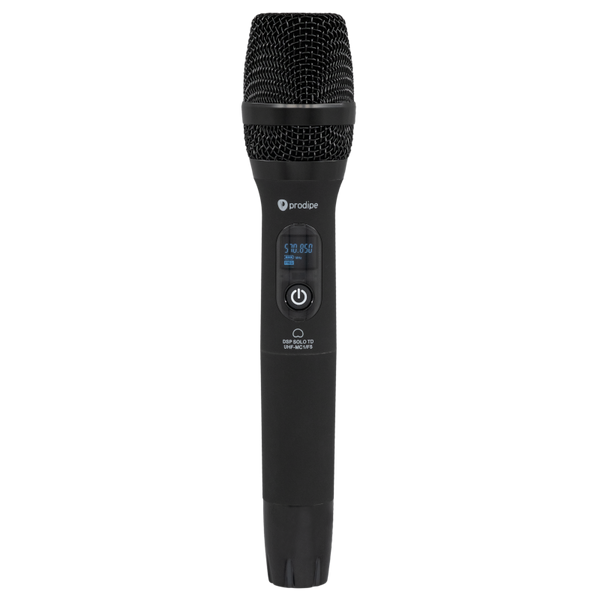

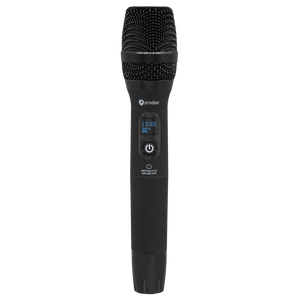

Transmitter

Microphone type:

• Dynamic

Directionality characteristics:

• Cardioid

Frequency response:

• 50 Hz - 16 kHz

Sensitivity:

• -55 dB ±3 dB (0 dB for 1V/Pa at 1 kHz)

Power:

• 3 - 8 mW

Power supply:

• 2 × LR6 (AA) 1.5V
• Batteries not included
• Battery life: approx. 8 h

Weight:

• 340 g

Dimensions:

• Ø52 × 255 mm

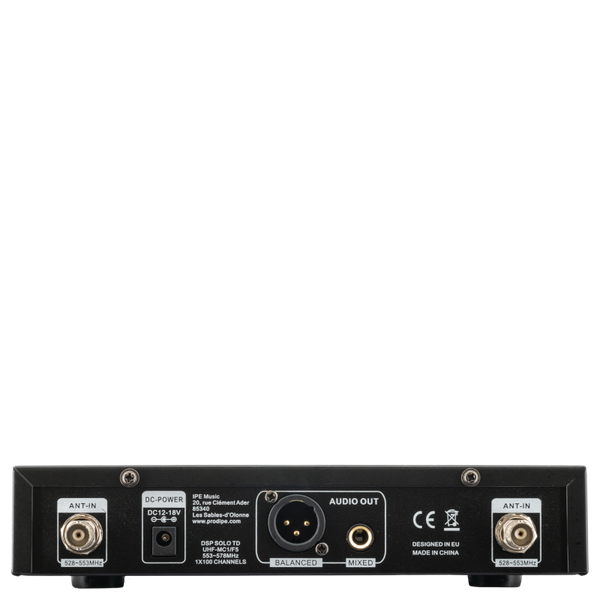

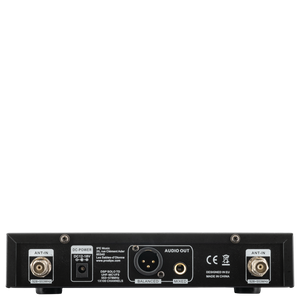

Receiver

Sensitivity:

• Less than -94 dBm

Weight:

• 860 g

Frequency response:

• 30 Hz - 20 kHz

Outputs:

• XLR (balanced)
• Jack 6.35 mm (unbalanced)

Dimensions (width. × height. × head.):

• 50 mm × 220 mm × 210 mm
